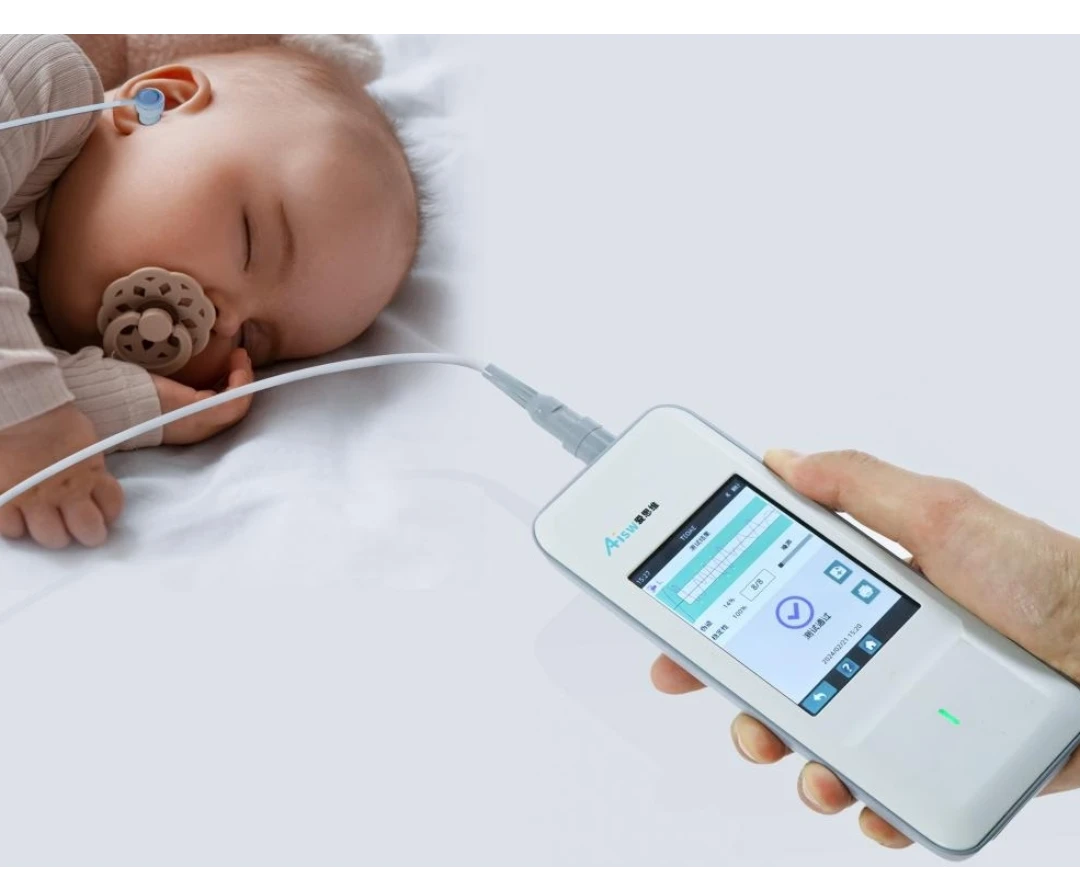

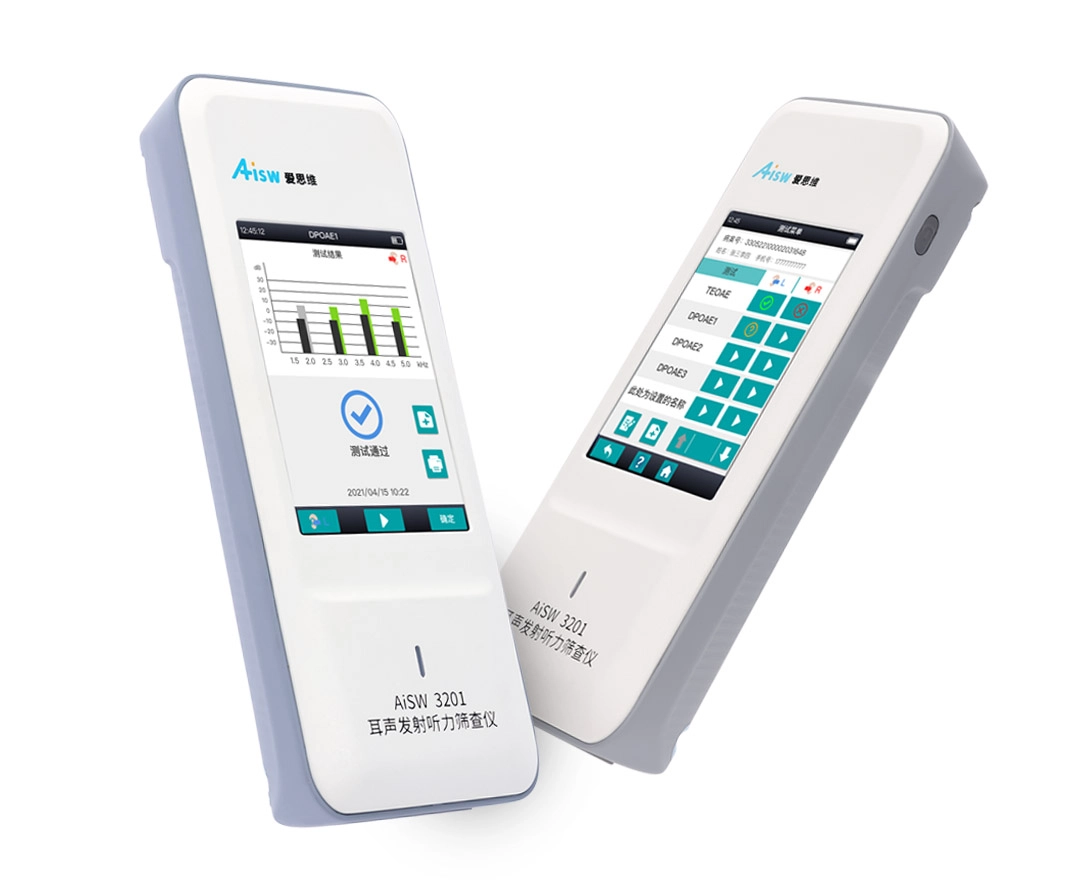

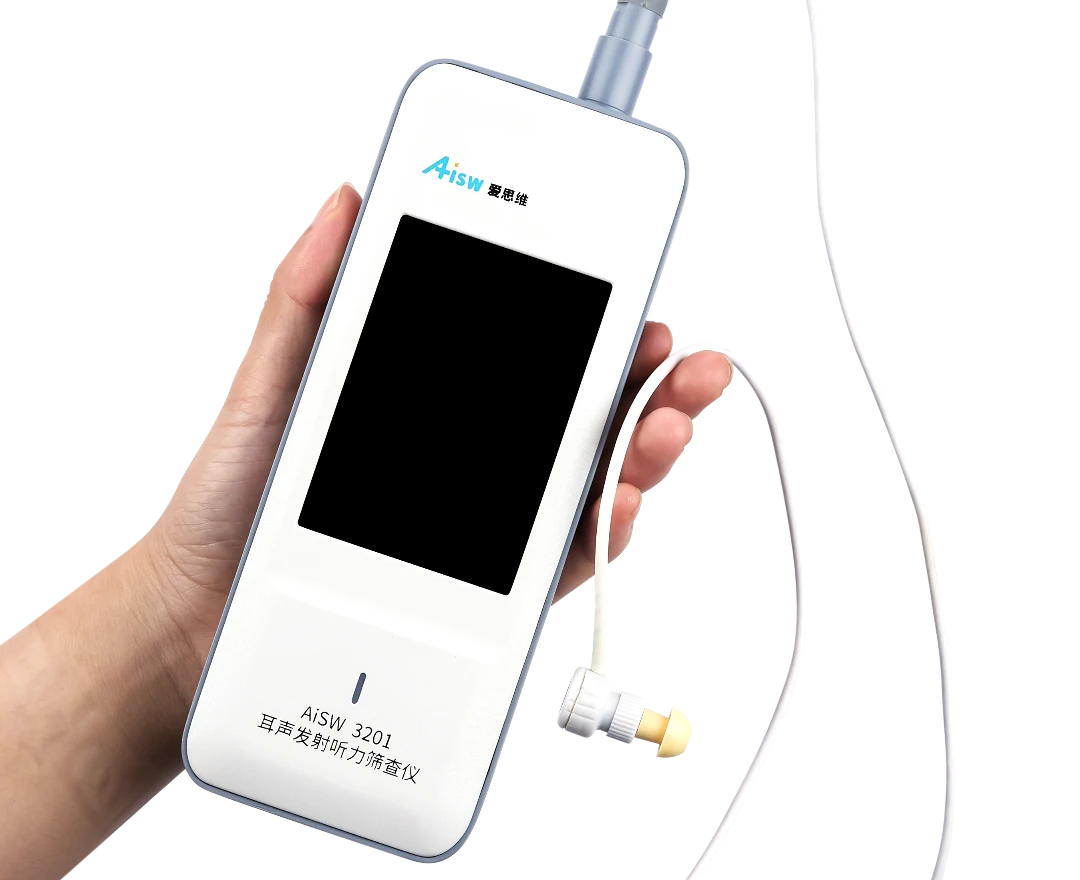

AiSW3201 Otoacoustic Emissions Screener (Type 2)

Utilizes TEOAE and DPOAE technologies, suitable for newborn hearing screening, as well as hearing assessments for infants and adults.

The AiSW3201 Otoacoustic Emissions Screener utilizes TEOAE and DPOAE technologies. A speaker in the probe transmits stimuli of specific intensity and frequency into the ear. These stimuli cause the cochlea to generate spontaneous otoacoustic emissions, which are then transmitted through the ossicles and tympanic membrane and released into the external auditory canal. The probe's microphone measures the intensity of the otoacoustic emissions in the external auditory canal. By analyzing the measured otoacoustic emission intensity, the cochlear mechanism is assessed, and it is determined whether the cochlear function is normal, thereby achieving the purpose of hearing screening. It is suitable for newborn hearing screening, as well as hearing assessments for infants and adults. The product consists of a main unit, probe and charger. The product complies with the Type 2 (screening) of IEC 60645-6:2022Electroacoustics - Audiometric equipment - Part 6: Instruments for the measurement of otoacoustic emissions.

Main features:

● Complies with the Type 2 (screening) of IEC 60645-6:2022；

● TEOAE and DPOAE mode；

● Real-time display of TEOAE waveforms, test progress, signal level, and noise level;

● Battery-powered, compact size, easy to carry；

● Stores data internally and can be accessed;

● Internal data storage and Bluetooth-enabled printing..

Main technical indicators：

Standard IEC 60645-6:2022 Type 2（Screening）
Utilizing technology TEOAE / DPOAE
Evaluation methods TEOAE：Noise-weighted average，Effective signal peak count DPOAE：Noise-weighted average
Stimulus TEOAE：Non-linear click series DPOAE：Pure tone pair，ƒ2/ƒ1 = 1,22
Stimulus spectrum TEOAE：Cover 1,5 kHz to 3 kHz
Stimulus SPL TEOAE：84,5dB peSPL Test frequencyL1=65 dB，L2=55 dB
Test frequency DPOAE1：ƒ2= 2、3、4、5 kHz； DPOAE2：ƒ2= 1,5、2、2,5、3、4、5 kHz
The test display TEOAE：Average waveform, TEOAE peak count, noise level, artifact level, stability, test progress DPOAE：DPOAE level、noise level、test progress
The results display TEOAE：PASS/REFER，average waveform, TEOAE peak count, noise level DPOAE：PASS/REFER，DP-Gram with DPOAE、noise level
Measurement range TEOAE：-20 dB to +30 dB DPOAE：-10 dB to +30 dB
Statistical sensitivity TEOAE：98,0% DPOAE：98,0%
Noise reduction ≥ 30 dB
Internal database Up to 1000 patients Up to 7500 test data
Calibration Validity: 12 months All the parameters are Adjustable via the device software
Monitor Type: Graphical color TFT LCD, capacitive touchscreen Size: 3,5″ Resolution: 320×480
Interface USB, Bluetooth(optional)
Printer Portable thermal mini-printer
Power Internal battery: 3,7V / 4000 mAh Li-ion； Battery life: 8 hours(based on a typical use scenario) Power adapter: 100-240 Vac, 50/60 Hz, Output: 5 Vdc,3 A
Work temperature 15℃~35℃
Size & Weight Size (W×D×H): 176 mm×70 mm×33 mm / 6,9 × 2,8 × 1,3 inch Weight(Includes battery): 270 g / 0,6 lbs

*Specific indicators are subject to the product instruction manual
