Main features：
Complies with the requirements of IEC standard Type 1 instruments;
Directly measure the admittance of the human ear and draw the tympanum and eustachian tube diagrams;
Display, store, and retrieve test results directly from the host without the need for a computer, and print them with a built-in printer;
The computer controls the host to work and print through the USB interface.
Fulfill standard
IEC 60645-5，Type 1 (Diagnostic/clinical)
Admittance measurement system
Measurement range:
tympanogram：0 ml～2 ml，0 ml～8 ml
Accurency: ±5% or ±0,1 ml
Minimum HL range
Supra-aural earphones：Tone：50 ~120 dB；Noise：50 ~ 120 dB
Insert earphones：Tone：50 ~100 dB；Noise：50 ~100 dB
Probe tone
Frequency: 226 Hz/ 678 Hz/800 Hz/1000 Hz
Level: 85 dB SPL (@ 226 Hz)/70 dB SPL (@ 678Hz)/70 dB SPL (@ 800 Hz)/70 dB SPL (@ 1000 Hz)
Available tests
● Tympanometry (automatic and manual)
● Acoustic Reflex Threshold (automatic and manual)
● Combination testing
● Acoustic Reflex Decay
● Acoustic Reflex Latency
● Eustachian Tube Function
● Probe check
● Impedance calibration
Tympanometry
Measurement mode:
Measurement plane tympanometry
Meatus-compensated tympanometry
Selectable sweep direction
User selectable pressure range
Maximum range: -600 to +200 daPa
Safety limits: -800 daPa and +600 daPa
Available rates: 50、100、 200、 400、600 daPa/sec
Manual pressure adjustment
Auto start feature
Acoustic reflex test
Ipsilateral and contralateral stimulation
Stimulation：0,5 kHz、1 kHz、2 kHz、4 kHz or noise
Four different tests available:
● Automatic threshold
● Fixed intensity
● Growing intensity
● Manual mode
Acoustic reflex decay test
Measurement mode:
● Measurement plane tympanometry
● Meatus-compensated tympanometry
● Selectable sweep direction
● User selectable pressure range
● Maximum range: -600 to +200 daPa
● Safety limits: -800 daPa and +600 daPa
● Available rates: 50、100、 200、 400、600 daPa/sec
● Manual pressure adjustment
● Auto start feature
Acoustic reflex test
Ipsilateral and contralateral stimulation
Stimulation：0,5 kHz、1 kHz、2 kHz、4 kHz or noise
Four different tests available:
● Automatic threshold
● Fixed intensity
● Growing intensity
● Manual mode
Acoustic reflex decay test
Ipsilateral and contralateral stimulation
Test duration: 2 sec to 10 sec (adjustable)
Acoustic reflex latency test
Ipsilateral and contralateral stimulation
Eustachian tube function test
Includes：
Tympanometry with intact tympanic membrane, Tympanometry with perforated tympanic membrane, and
Expanded (abnormally open tympanic membrane) tympanometry
Combination tests
Two user programmable combination tests available
Each test consists of a sequence of
● Tympanometry
● Reflex test (Fixed intensity or Automatic threshold, with user defined parameters)

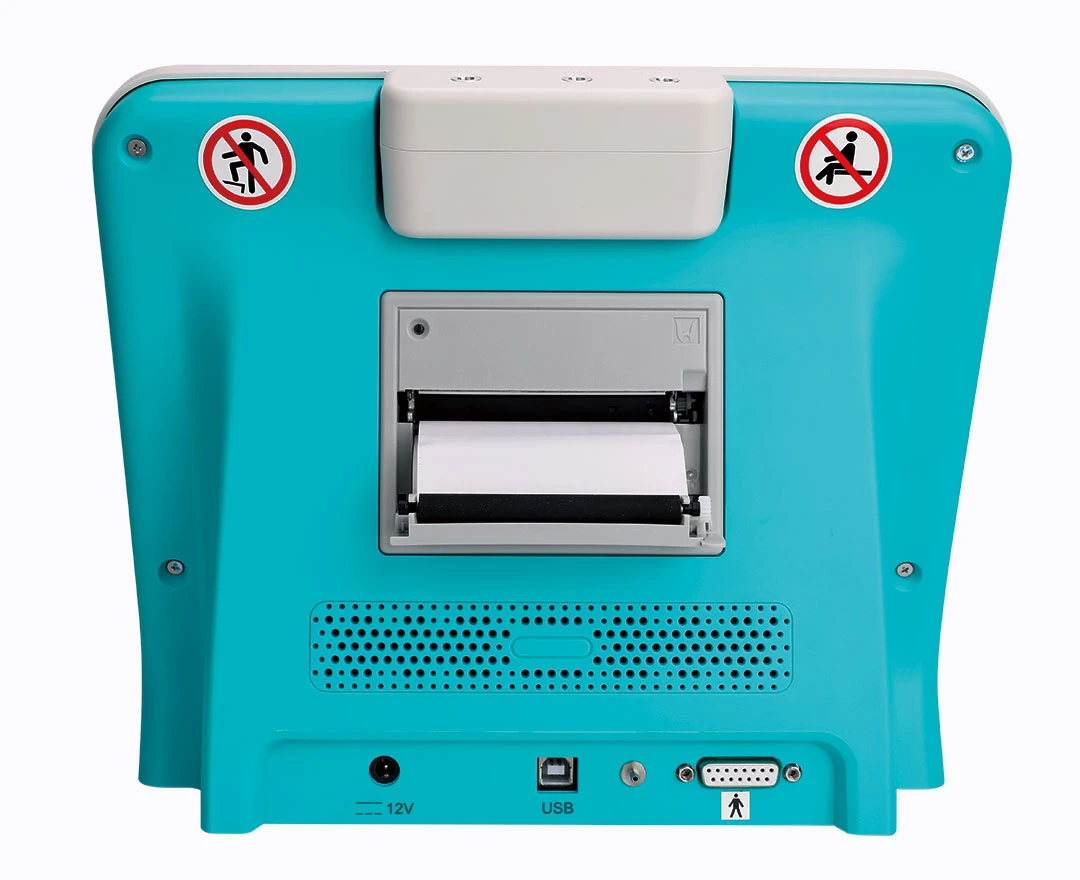

Printer
Inner thermal printer
Paper size: 80 mm
Calibration
Validity: 12 months
All the parameters set through the device software
Computer interface
Connection: USB
Monitor
Type: Graphical color TFT LCD
Size: diagonal 10″
Resolution: 1024×600
Power supply
Maximum consumption: <30 VA
Power supply: 12 V, 3A cont., through an external medical grade 100- 240 Vac 50/60 Hz power supply
Size & Weight
Size (W×D×H): 290 × 265 × 235 mm / 11,4 × 10,5 × 9,25 inch
Weight: 3,4 kg / 7,5 lbs
