Main features:

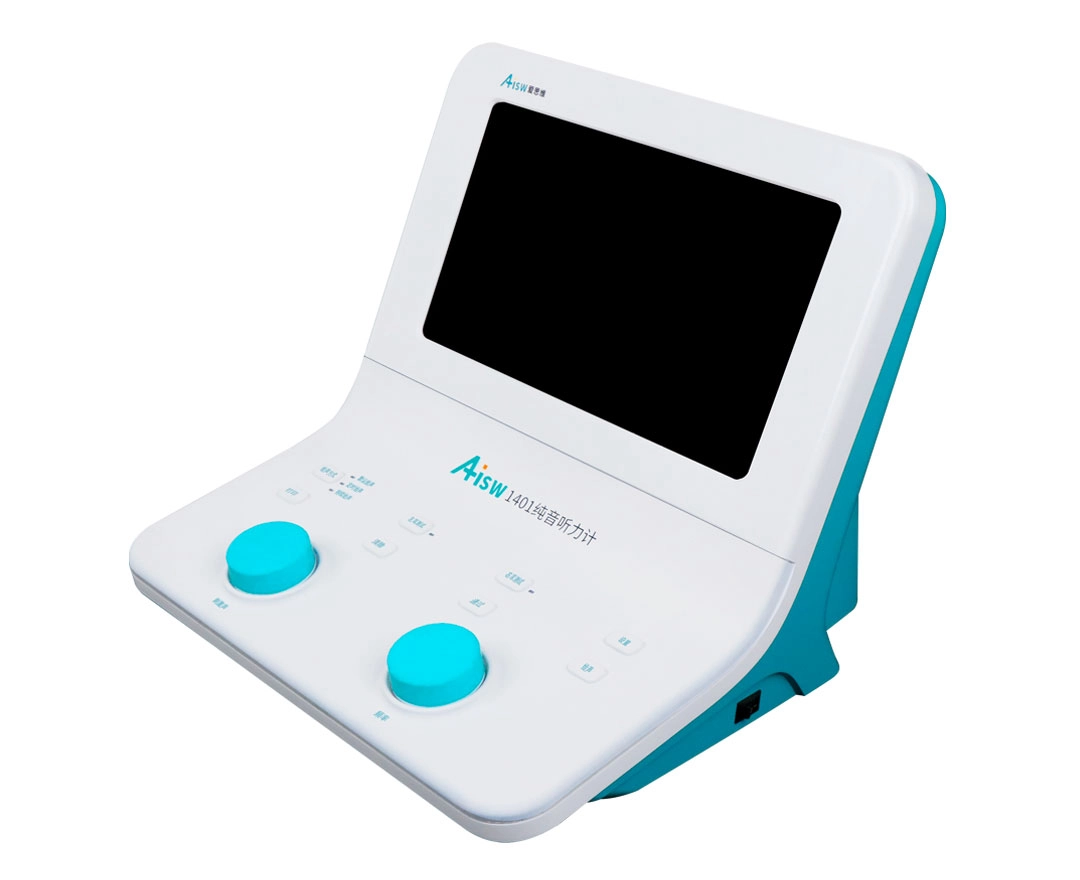

Dual channel screening monitoring audiometer (Type 4);
Display, store, and retrieve test results directly from the host without the need for a computer, and print them with a built-in printer;
Control the operation and printing of the host computer through the USB interface;
Simple function, easy operation, and affordable price.
Fulfill standard
IEC 60645-1:2017 ，Type 4 (Screening monitoring)
Available signals
Stimulus: pure tone
Signal specification
Attenuator step: 5 dB
Available outputs and transducers
AC: Headphones (TDH-39/DD45 )
Free field
Available tests
Pure Tone audiometry
Intensity
AC: 0 to 100 dB HL
Frequency range
AC:125 to 8000 Hz
Patient-operator communication
Patient response trigger
Calibration
Validity: 12 months
All the parameters set through the device software
Computer interface
Connection: USB
Monitor

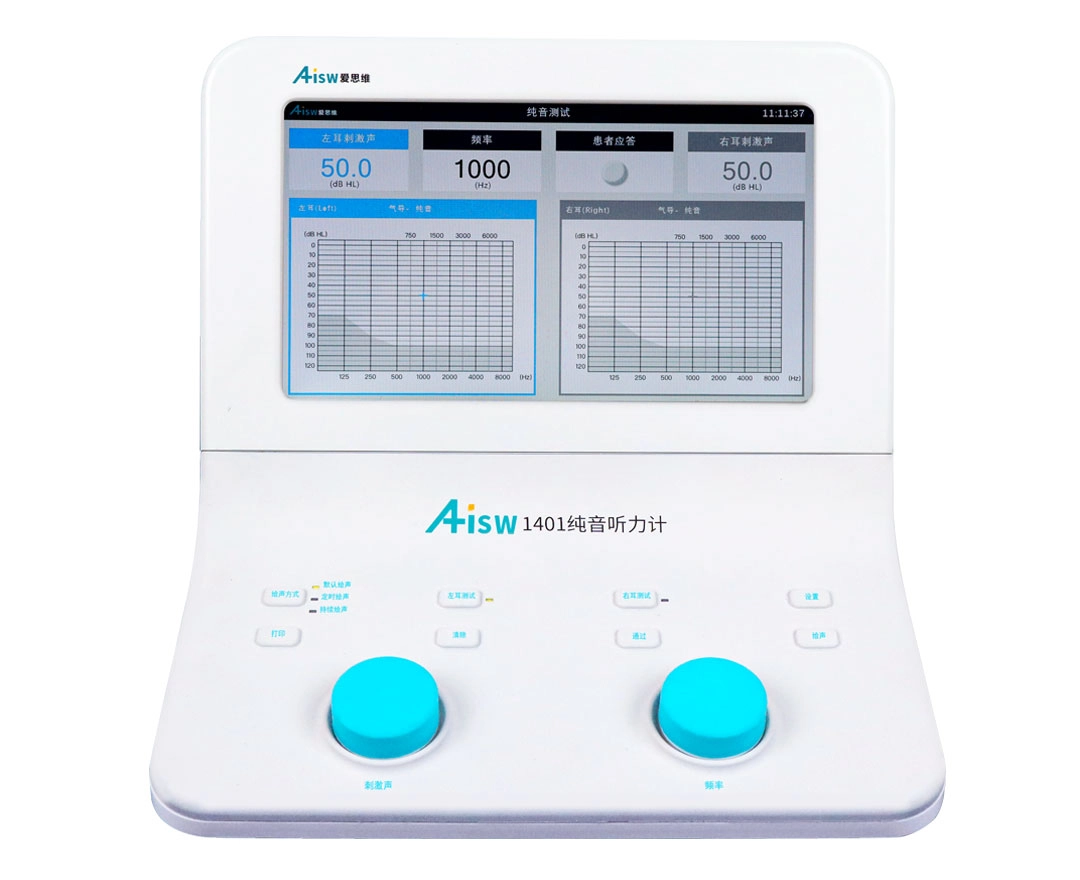

Live display of the graph of all the tests
Type: Graphical colour TFT LCD
Size: diagonal 10″
Resolution: 1024 × 600
Power supply
Maximum consumption: <20 VA
Power supply: 12 Vdc, 3A,through an external medical grade 100- 240 Vac 50/60 Hz power adapter
Size & Weight
Size (W×D×H): 290 × 265 × 235 mm / 11,4 × 10,5 × 9,25 in
Weight: 2,3 kg / 5,1 lbs
