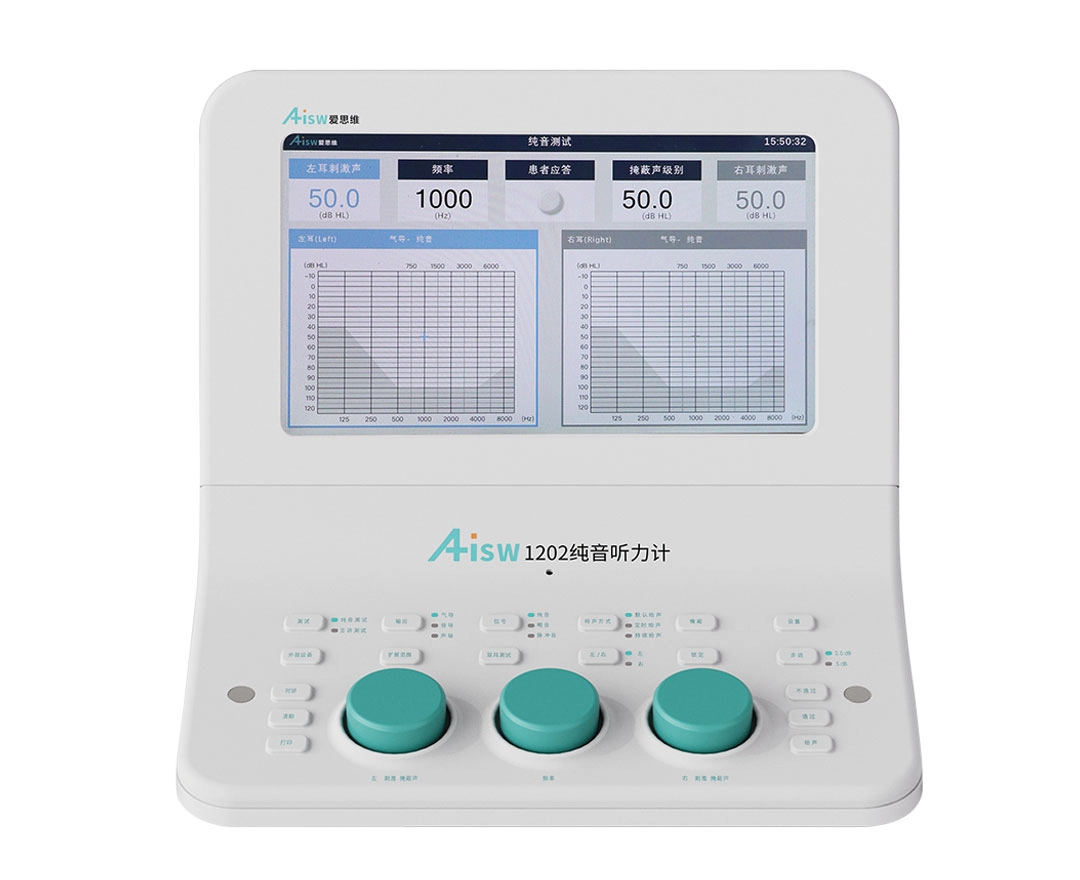

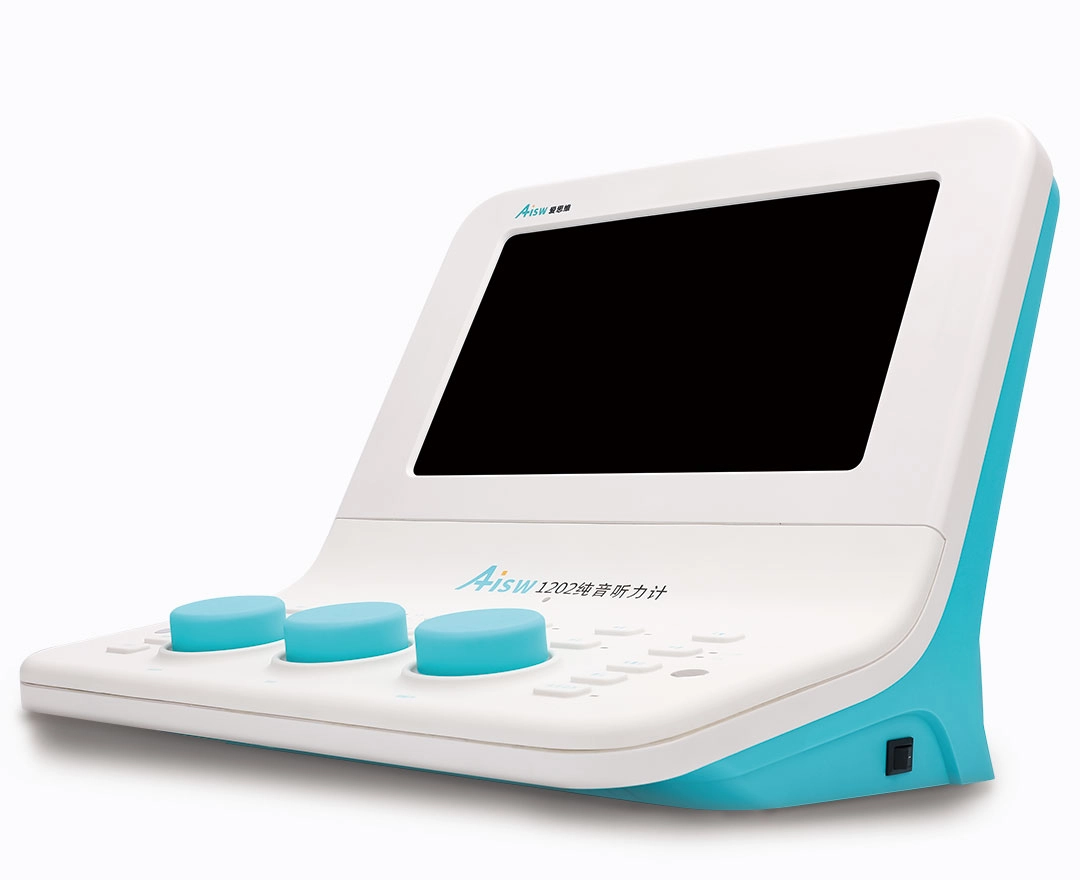

AiSW 1202 Pure-tone Audiometer

Dual channel clinical diagnostic audiometer

The AiSW 1202 pure-tone audiometer consists of a host, two air conduction earphones, a bone conduction earphones, a patient response trigger, and a power adapter. The built-in microprocessor of the host controls the sound card to emit pure tones of different frequencies and sound levels through an electroacoustic transducer, which is used to test the hearing sensitivity of the human ear at different frequencies within the auditory range and determine whether there is hearing impairment. Can be used to evaluate the degree of auditory loss, make judgments on the type of hearing loss and the location of lesions. During the test, the subjects themselves determine whether they have heard the sound emitted by the earphones. The minimum sound intensity that can be heard at each frequency is taken as the hearing threshold, and the hearing threshold at each frequency is connected to the hearing coordinate graph, which is the hearing graph. The measurement results are directly displayed on the host screen, stored inside the host, and can be printed by the built-in printer. If necessary, they can be connected to a computer for post-processing. Suitable for testing and analyzing human ear hearing threshold in clinical units. The AiSW 1202 pure tone audiometer complies with the Type 2 requirements of IEC 60645-1:2017 Electroacoustics—Audiometric equipment— Part 1: Equipment for pure-tone and speech audiometry.

Main features:

Dual channel clinical diagnostic audiometer (Type 2);

Provide pure tone testing and speech testing;

Display, store, and retrieve test results directly from the host without the need for a computer, and print them with a built-in printer;

The computer controls the host to work and print through the USB interface.

Main technical indicators：

Fulfill standard IEC 60645-1:2017 Pure tone audiometry:Type 2(Clinical diagnostic) Speech audiometry:Class B
Available signals Stimulus: pure tone, warble tone, pulsed pure tone 2 external inputs for speech audiometry MIC input for live speech audiometry Internal input (flash memory) for speech audiometry Masking: NBN
Signal specification Attenuator step: 1 dB, 2,5 dB、5 dB

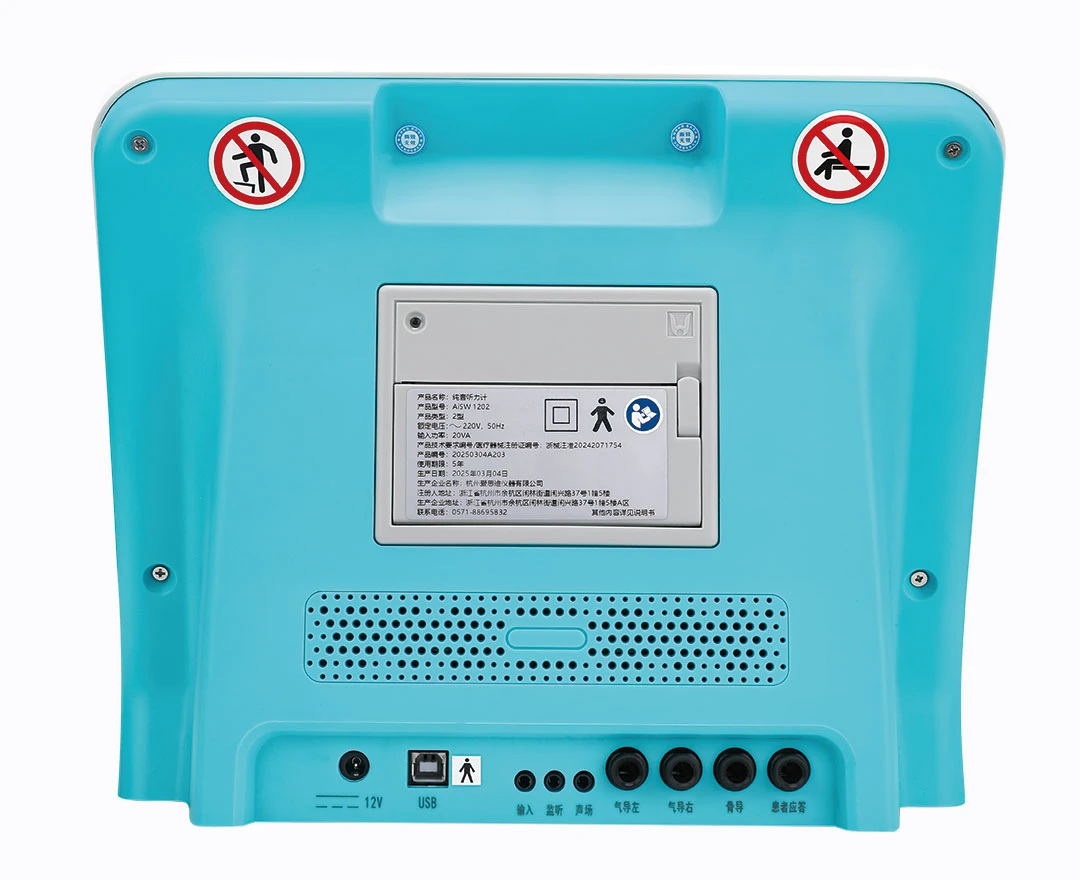

Available outputs and transducers AC: earphones (TDH-39 ) BC: B71 bone vibrator Free field
Available tests ● Pure Tone audiometry ● Speech audiometry (2 channels)
Intensity AC: -10 to 120 dB HL BC: -10 to 70 dB HL
Frequency range AC:125 to 8000 Hz BC:250 to 8000 Hz
Patient-operator communication Talk over: built-in or external microphone Talk back: through built-in speaker or monitor headset (included); patient microphone included Patient response trigger
Monitor signal Both channels monitored through monitor headset (included)
Internal flash memory (only harp plus) Used to store the speech material Capacity: 32 GB
Printer Internal thermal printer Paper size: 80 mm
Internal database Up to 1000 patients both AC and BC thresholds
Calibration Validity: 12 months All the parameters set through the device software
Computer interface Connection: USB
Monitor Live display of the graph of all the tests Type: Graphical colour TFT LCD Size: diagonal 10″ Resolution: 1024 × 600
Power supply Maximum consumption: <20 VA Power supply: 12 Vdc, 3A,through an external medical grade 100- 240 Vac 50/60 Hz power adapter
Size & Weight Size (W×D×H): 290 × 265 × 235 mm / 11,4 × 10,5 × 9,25 in Weight: 2,3 kg / 5,1 lbs

*Specific indicators are subject to the product instruction manual
